location module

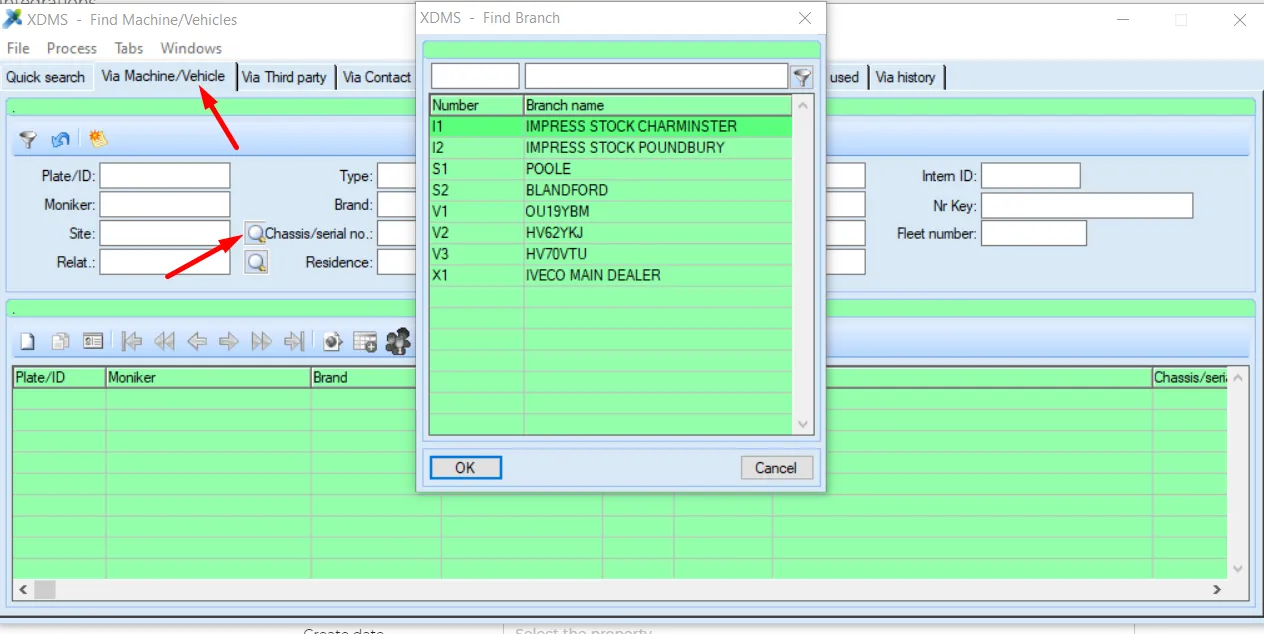

Location module can import locations from XDMS. You can browse the locations in XDMS -> Vehicles and machines -> Vehicles and machines management -> Via Machine/Vehicle -> Site

The module passes two values NMwh - The name of the location (2nd column on the screenshot above), and NRwh - the number of the location (1st column on the screenshot above). It`s recommended to create a separate location entity in HyperPortal and to map NRwh to the XDMS External Ref field, and NMwh to the title field.

The example of correct mappings - https://volodymyro.hyper1.net/settings/integrations/xdmsIntegration/xdmsLocationModule/
