Set process values

8min

This task changes the value of selected process properties when it`s executed. In the 'mapping' section you can select properties and enter values that should be set. Keep in mind that you should enter valid values to corresponding properties.

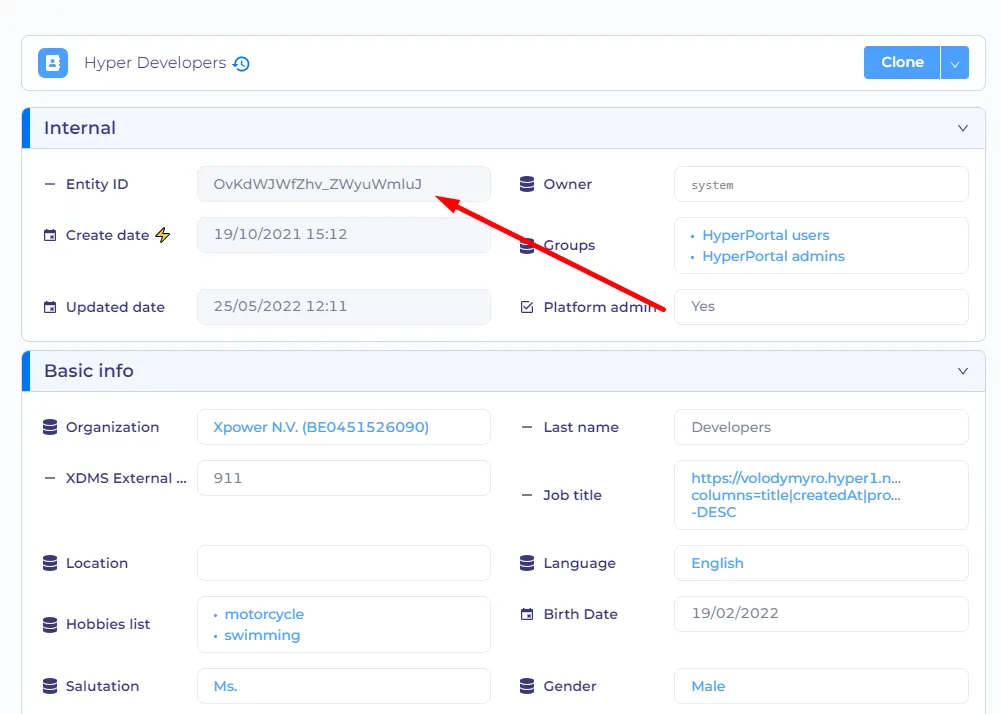

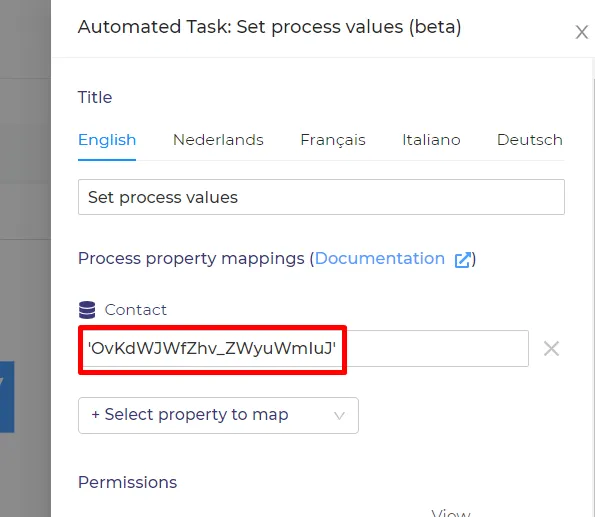

For example - 'entity' type properties work only with entity ID. If I want to refer to a certain item I need to enter the 'entity ID' of the item.

Document image

Document image

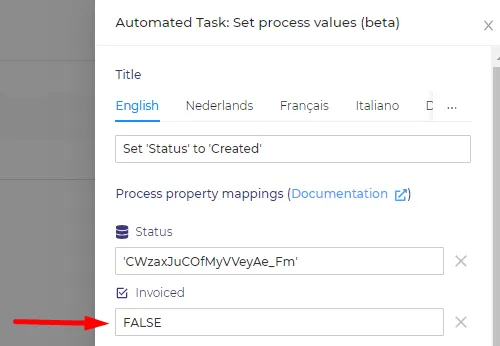

If you want to map checkbox fields, please remember that there are only two available values - 'TRUE' and 'FALSE'.

Document image


You can also use computed expressions during the mapping process.

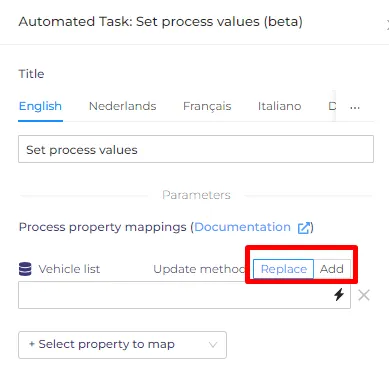

You can choose between two modes if the chosen property is of a 'list-type'. Replace mode will replace all data in the field, add mode will add an item to the existing list.

Document image

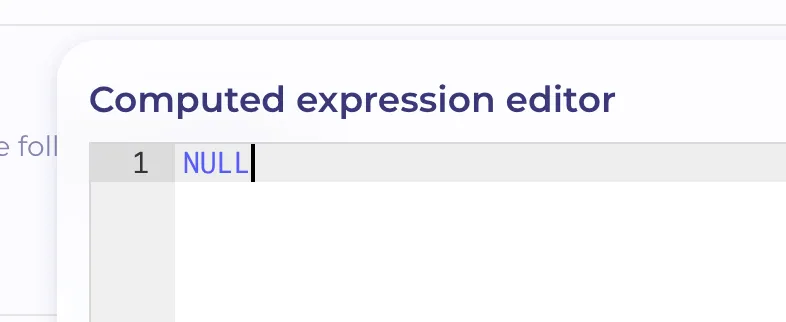

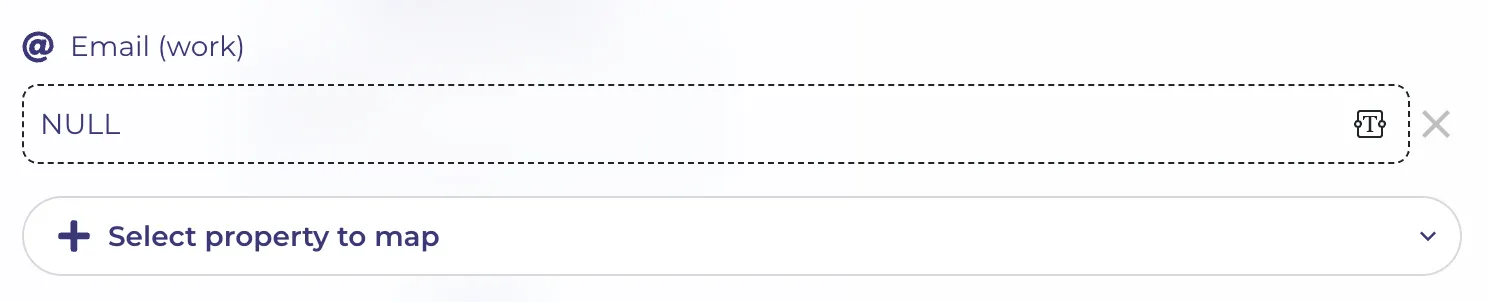

If you want to clear a field, set the computed expression for the selected property to NULL



Document image

Document image




Example of usage

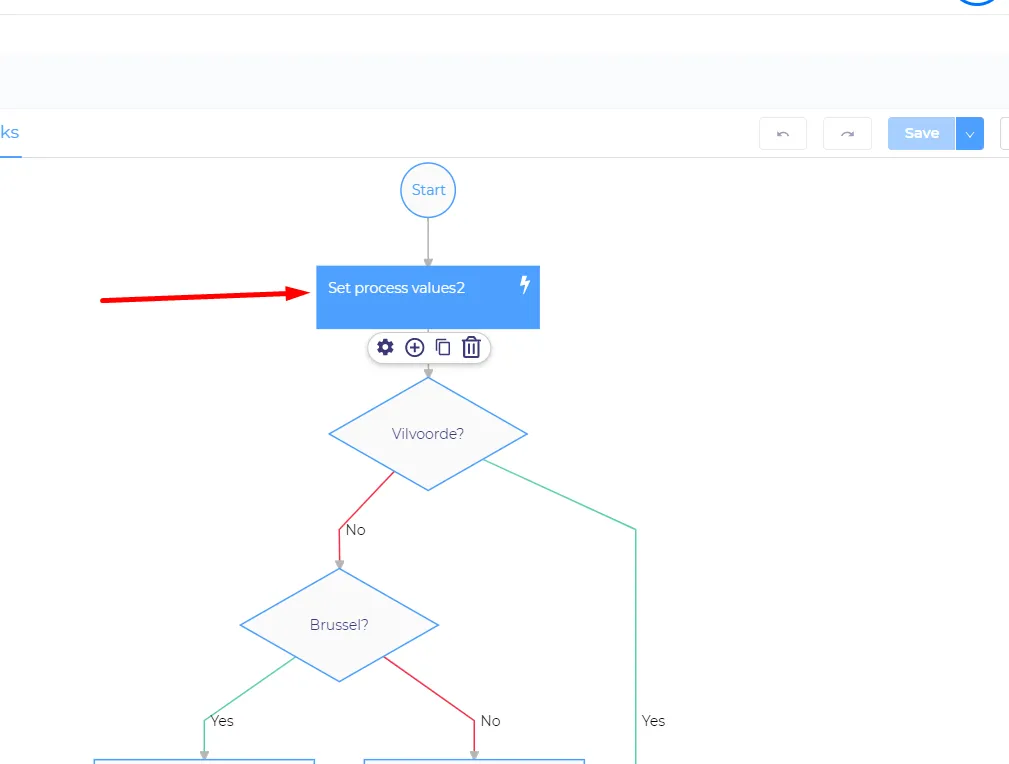

You can set the status of the Lead process at the start.

Document image

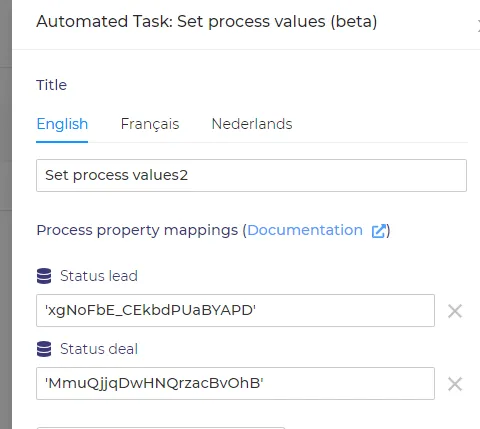

First, we set needed values for the 'Status lead' and 'Status' deal properties.

Document image

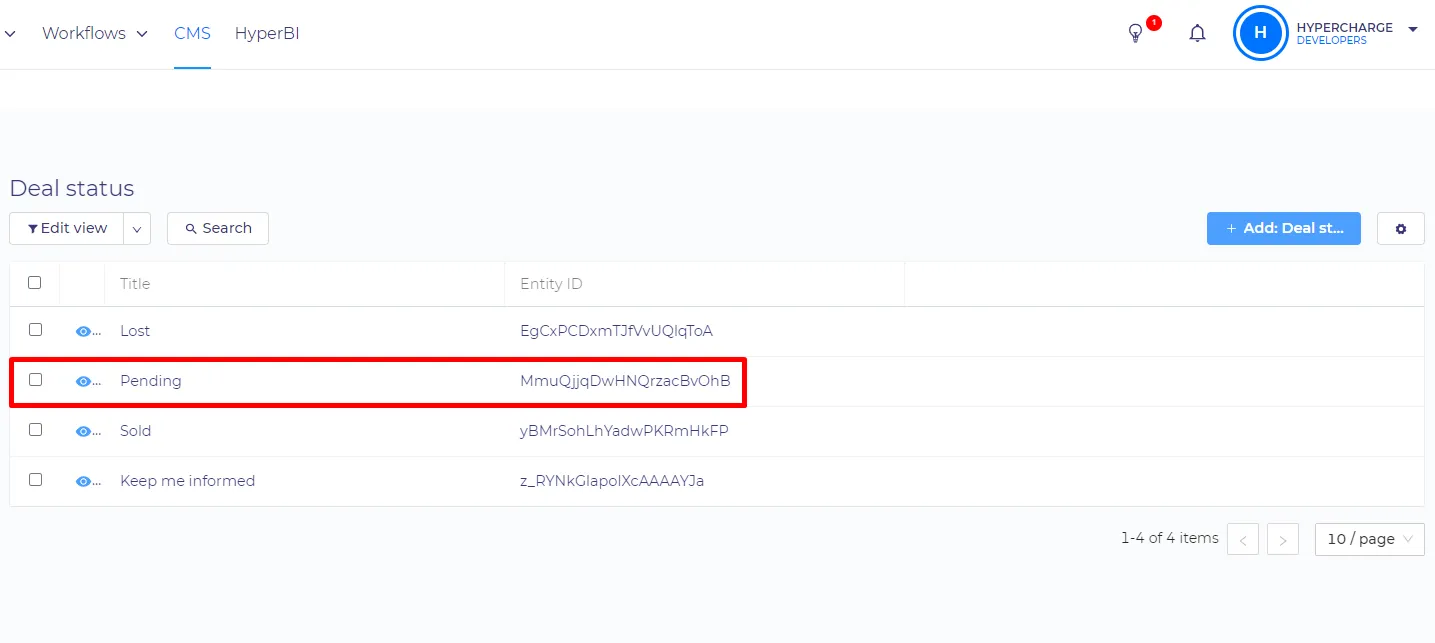

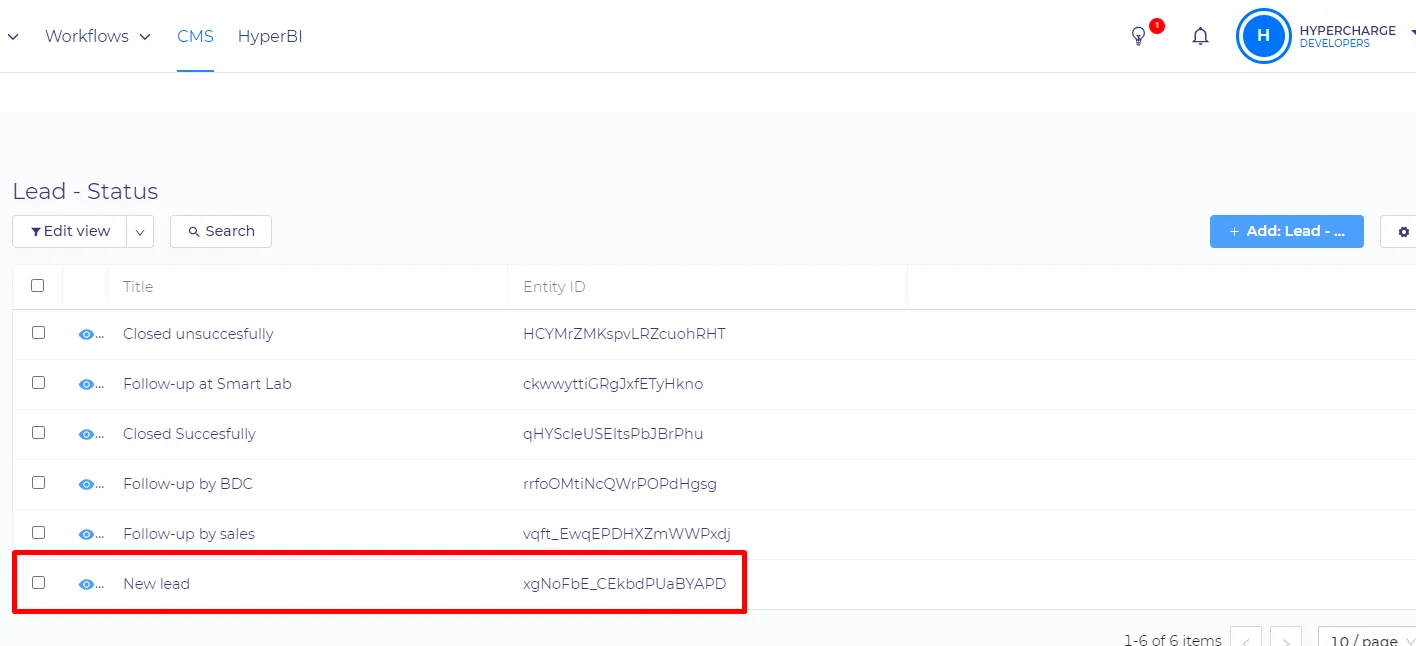

Because we are setting values for entity type properties, we are using entity ID`s of those values.

Document image


The value that we set for the 'status lead' property is 'New lead', for the 'Status deal' it`s 'Pending'.

Document image


Ability to remove items from list entity

In the Set process values, Set entity values We have the options to 'Add' and 'Replace' items to the list in property mappings section.

We added an extra toggle with 'Remove', where We can pass an entityId, and if this item is in the list - we remove it, if not there - we do nothing.

How it works:

  • We have lists/entity lists with original sets of data and sets of data that we want to remove from original lists:
Document image

  • Property mapping in Set process values/Set entity values allows to remove list items from another list:
Document image

  • Result of removing:
Document image
