Dashboards

5min

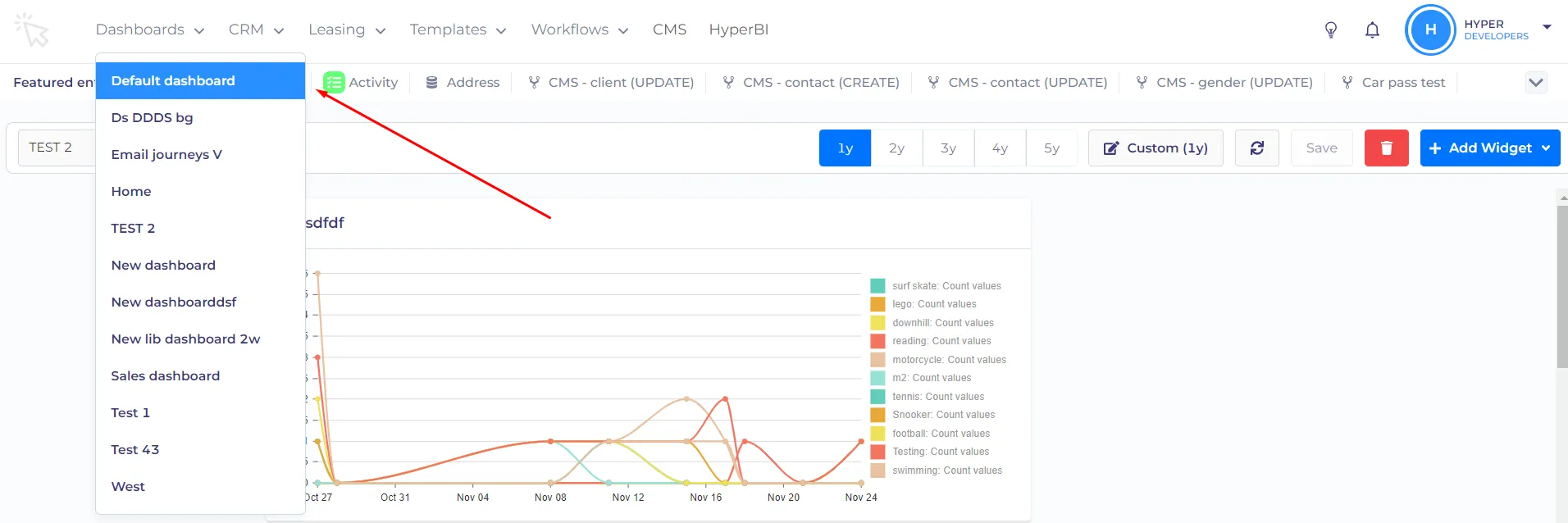

You can create personalized dashboards with charts and widgets in Hyper Portal. To open the dashboard go to Dashboards -> select any dashboard.

Document image
๏ปฟ

Creating a dashboard

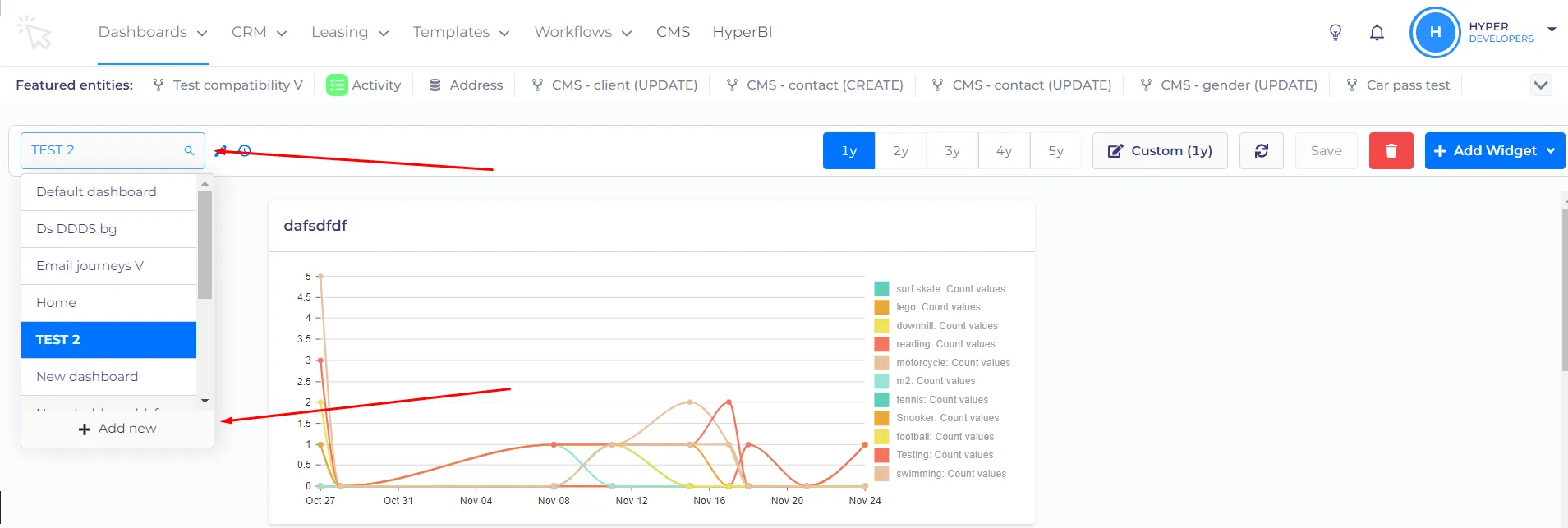

To add a new dashboard you need to click on the dashboard selector -> 'Add new' (see screenshot below)

Document image
๏ปฟ

Now you can name your dashboard and add new widgets.

Widgets

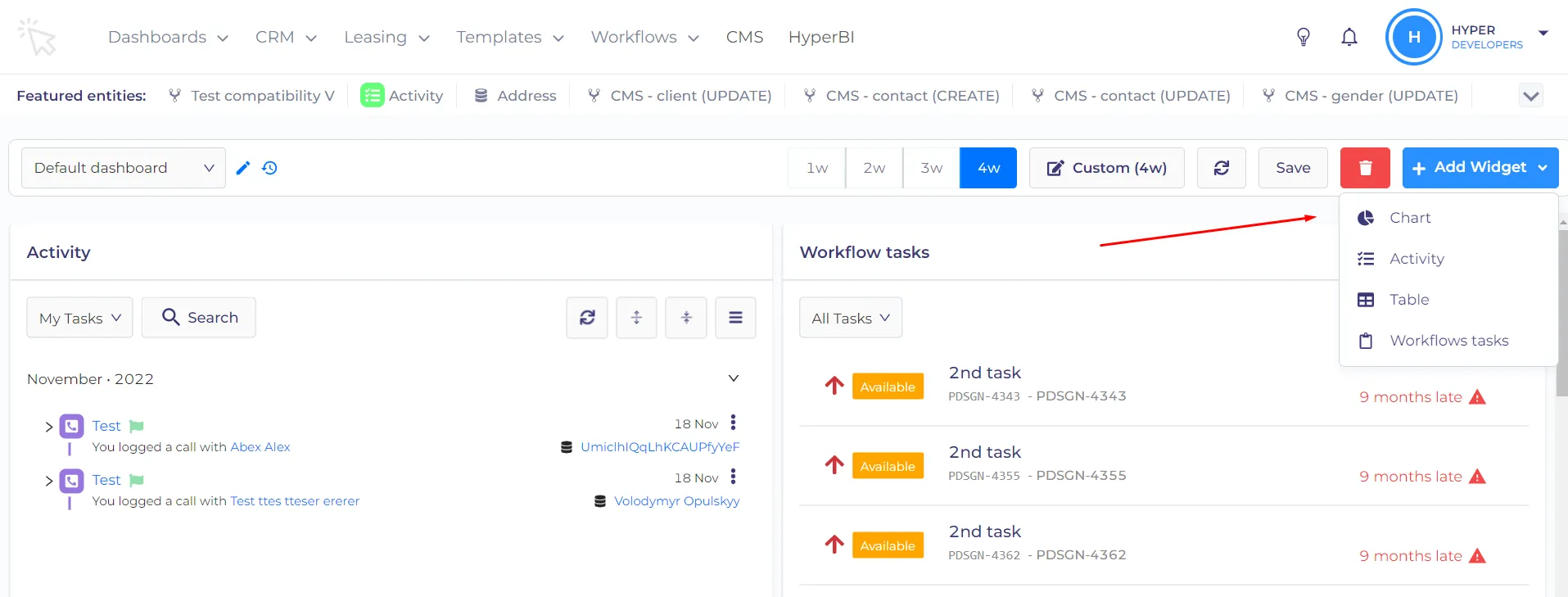

To add the widget press on the 'Add Widget' button then choose a widget type.

Document image
๏ปฟ

Currently, there are four types of widgets available -

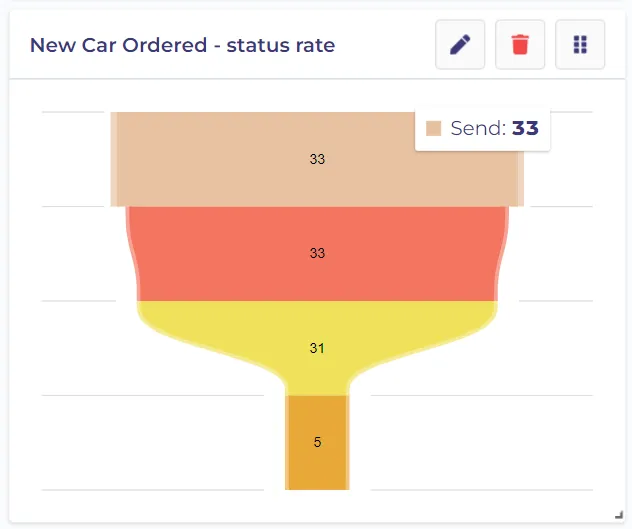

Chart - this widget is the graphical representation for data visualization

Document image
๏ปฟ

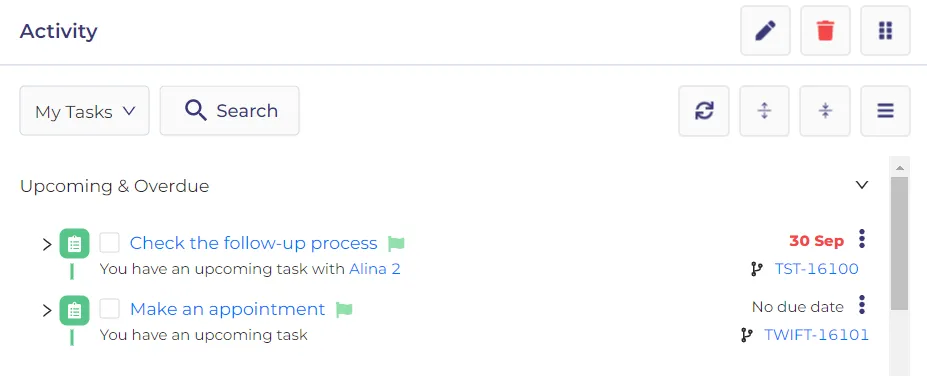

Activity - this widget displays all activity tasks (ad-hoc tasks) across the whole system.

Document image
๏ปฟ

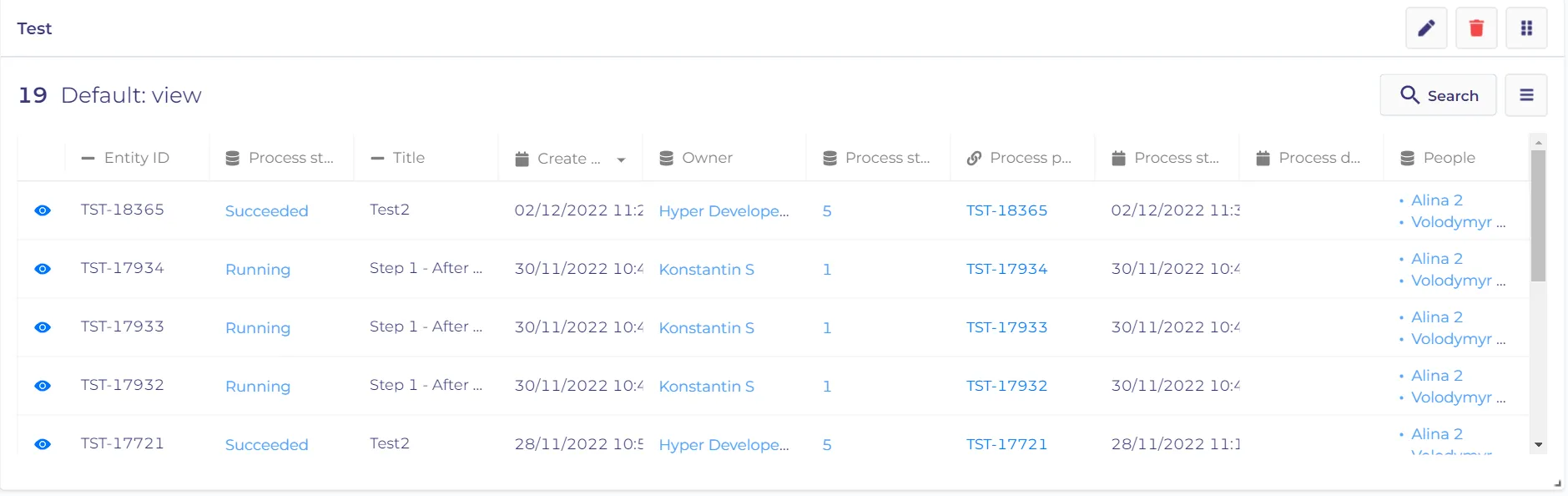

Table - this widget allows you to display any table view from CMS or Workflows.

Document image
๏ปฟ

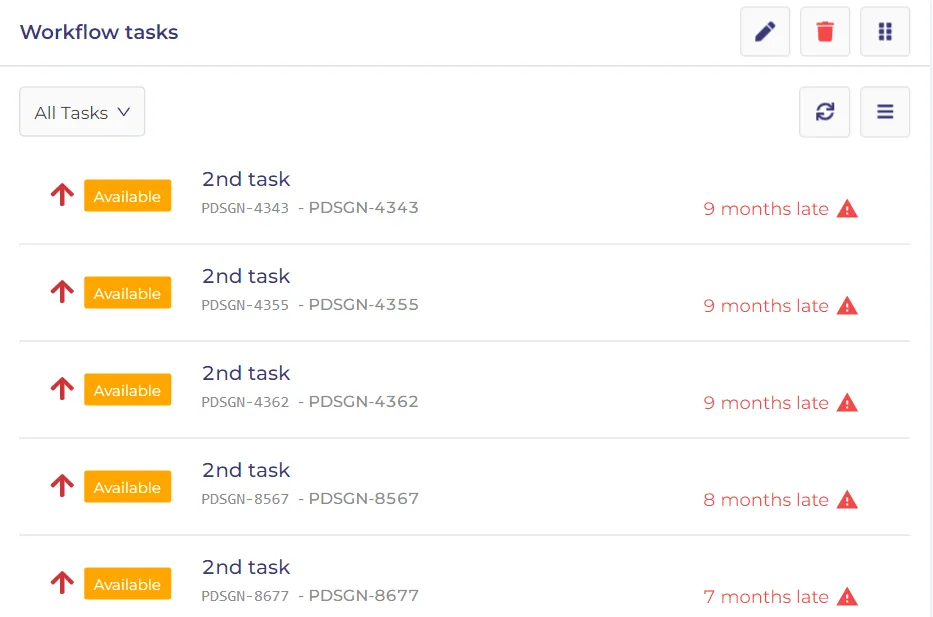

Workflow tasks - this widget is used for tracking workflow tasks across the system.

Document image
๏ปฟ

Date range

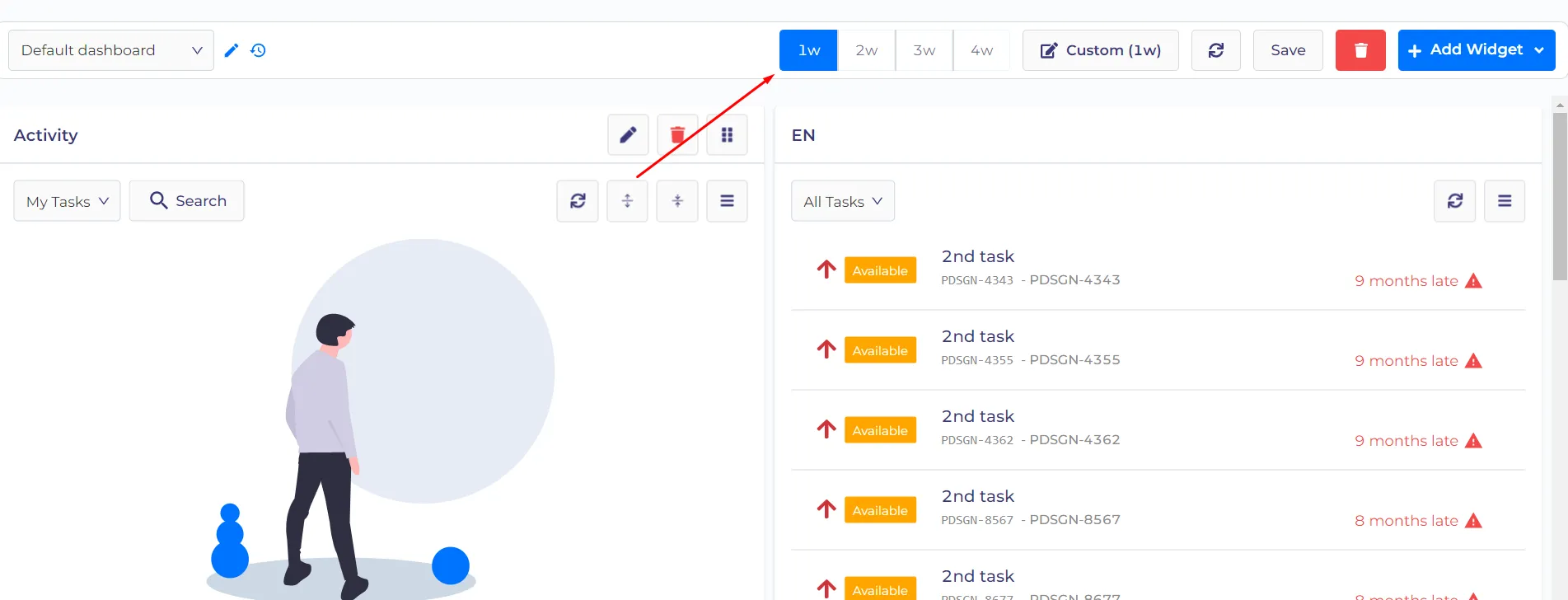

You can change the date range of the dashboard on the selector at the top.

Document image
๏ปฟ

Only records that were created in the selected time frame will be displayed.

There are two types of date ranges - absolute and relative.

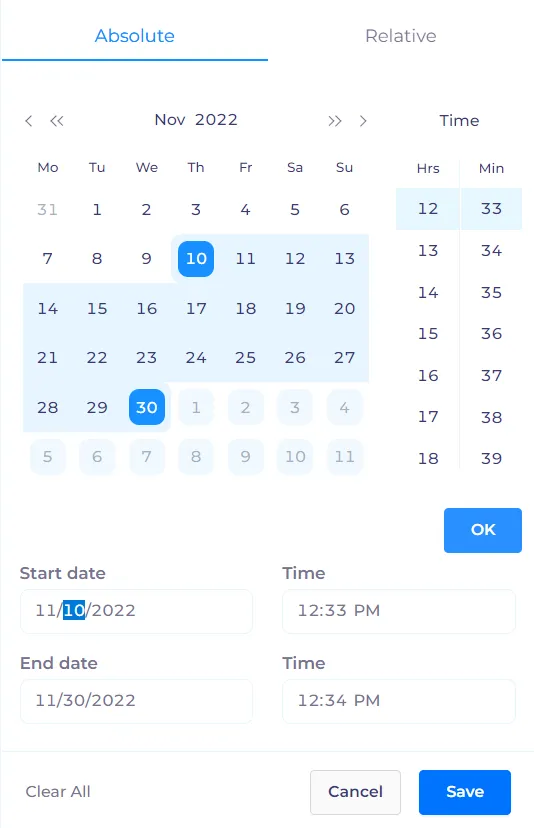

In the absolute date range, you can specify the start and end date

Document image
๏ปฟ

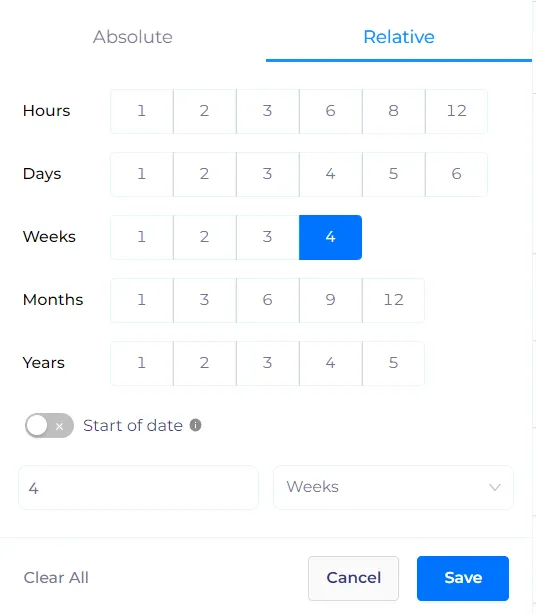

A relative date range is a period of time that is relative to the current date (last hour, last year, etc.)

Document image
๏ปฟ

Start of date - this feature allows you to set the relative time ranges to count from the start of the time period.

if the 'start of date' setting is enabled and the range is set to one month, the start date will be set to the start of the current month, not to one month ago. If today`s date is 07.12.2022 the start date will be 01.12.2022, not 07.11.2022.
